Steam generators
Electric
Switch on and go

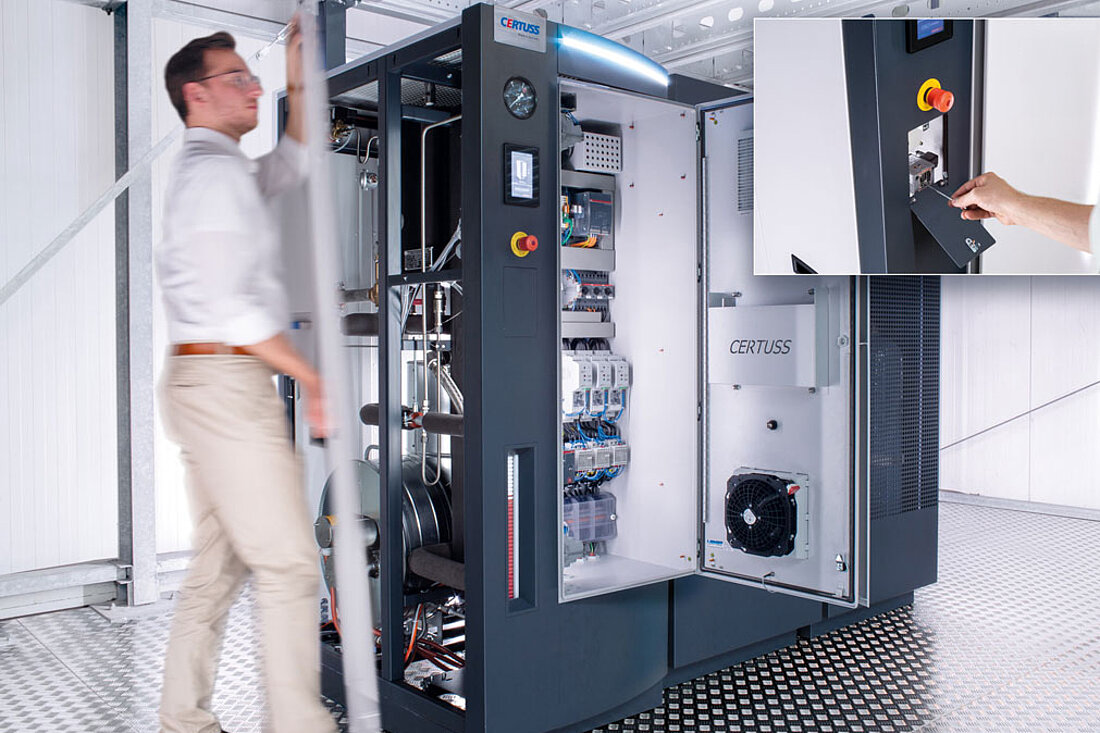

The new electric steam boiler E320MX
With the new EMX model range of electric steam boilers, CERTUSS offers you twice the steam output as before with a significantly smaller footprint.
More info here: certuss-emx.com
Advantages of the new Generation E
- Steam output from 10 to 320 kg/h, continuously adjustable
- Full steam output is ready in 3-5 minutes after system start-up
- Long-life design with high durability
- Fully automatic 72-hour operation
- High process reliability, remote maintenance
User-friendly and economical
Electric steam generators from CERTUSS are heated by stainless steel heating rods with a large heating surface. The output of the heating elements is regulated continuously via semiconductor contactors. One energy-efficient advantage is the immediate modulating output adjustment to the actual steam demand during the operating cycle.
For greater steam demand of up to 640 kg/h or fluctuating steam loads, several ELECTRO steam generators can be cascaded in series. Multiple systems like this are an especially economical solution.
Our compact electric steam systems feature built-in feed water tanks and feed water pumps. They require very little space and have a short heat-up time. Steam systems are also available as a unit with water conditioning equipment installed at the factory.
The stainless steel version of our ELECTRO steam generators prove their value in the generation of pure steam or culinary steam.
Electric steam generators
| Model | E 6 M — E 72 M | E10MX — E320MX |
|---|---|---|
| Steam output | 8 — 97 kg/h | 10 — 320 kg/h |
| Heat output | 6 — 72 kW | 8 — 240 kW |
| Electrical connection value | 6,8 — 73,8 kW | 8,75 — 240,75 kW |
| Height / Width / Depth | 1.850 / 880 / 680 mm | 1.900 / 774 / 1.150 mm |
| Min. / Max. operating pressure | 3,5 / 3,5 — 11 bar | 3,0 – 3,5 / 3,0 — 14,5 bar |
| Max. perm. overpressure | 6 / 10 / 12 bar | 4 / 6 / 10 / 12 / 16 bar |
